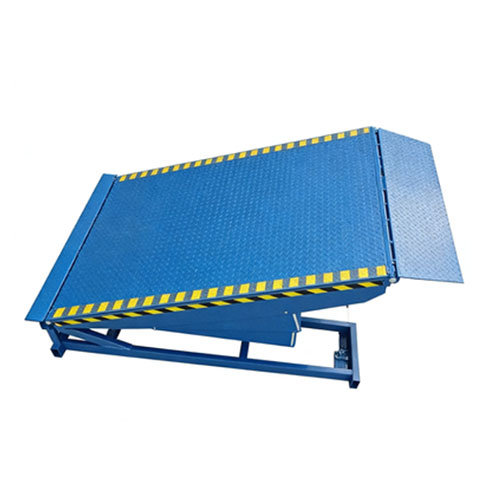

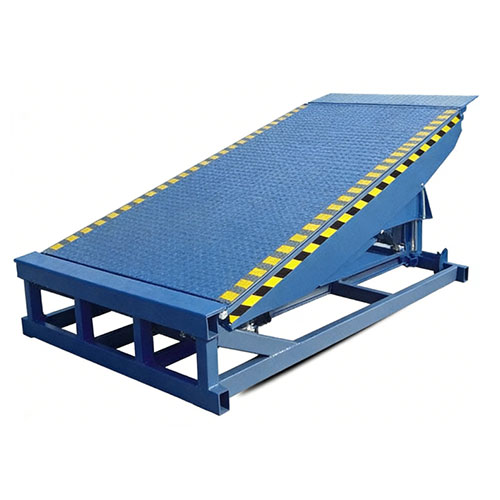

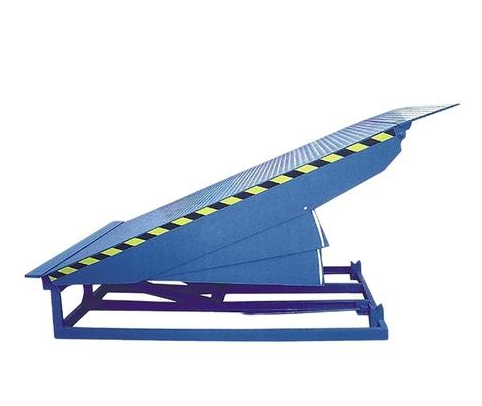

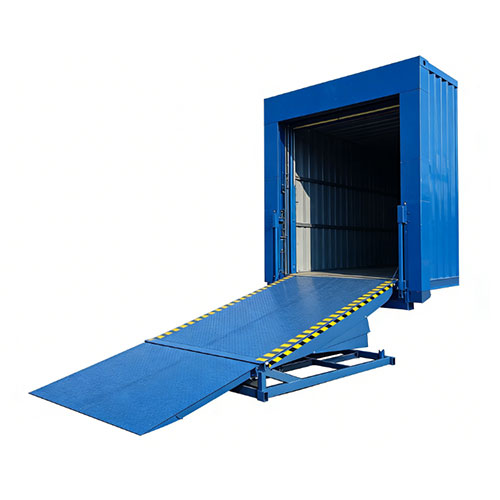

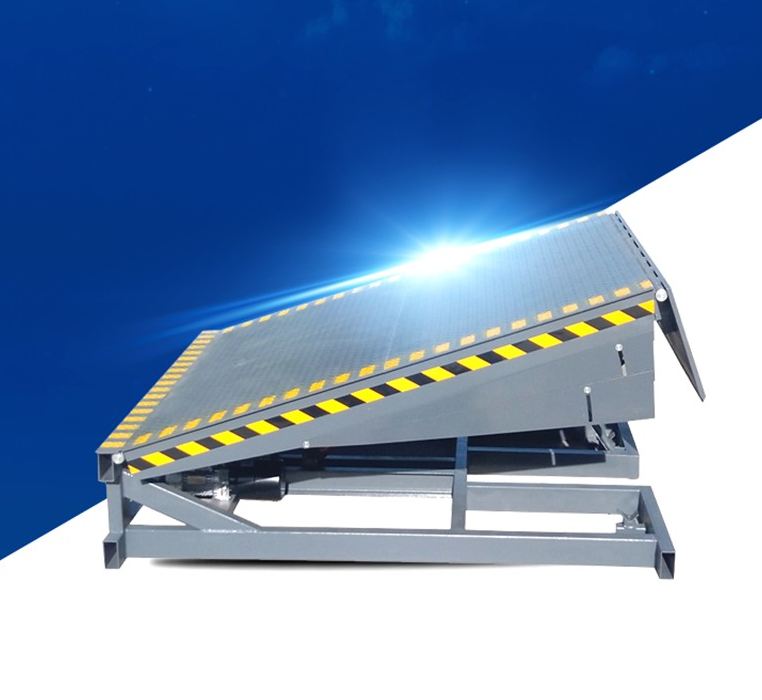

The dock leveler is a specialized piece of equipment that streamlines the loading and unloading of goods. Thanks to its height adjustment system, it establishes a stable connection between the truck body and the warehouse platform. This ramp allows forklifts and other handling vehicles to directly access the trucks for loading and unloading. It is very easy to operate and only requires one person.
PRODUCT DESCRIPTION
Our dock leveler is a premium auxiliary solution designed to streamline the loading and unloading process. By providing a seamless height-adjustable bridge between the warehouse platform and the vehicle, it allows forklifts to drive directly into the truck for rapid cargo handling. This system maximizes productivity, requiring only a single operator for full control.
PRODUCT CUSTOMIZATION
We provide tailor-made solutions to ensure our equipment aligns perfectly with your specific operational requirements. Our customization services cover technical specifications, such as load capacity, as well as aesthetic branding including personalized colors, logos, and nameplates.
PRODUCT DETAILS
Load Capacity: Heavy-duty performance ranging from 6 to 12 tons.
Platform Dimensions: Standard sizes of 2000×2000mm or 2000×2500mm, with bespoke sizes available upon request.
Operating Range: Features a 600mm total vertical stroke (+300mm upward and -300mm downward) to accommodate various truck bed heights.
Safety Features: Engineered with an anti-skid checkered surface to ensure maximum traction and prevent wheel slippage during transit.

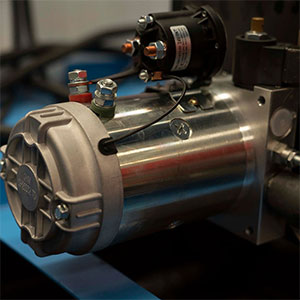

Hydraulic System: Equipped with a dual-cylinder design—individual hydraulic cylinders independently control the platform and the lip plate for precise operation.
Power Source: Standard AC power supply.
PARAMETERS
| Model | Platform Size(mm) | Tongue Plate(Width mm) | Lifting Height (Upward mm) | Lifting Height (Downward mm) | Power(kw) | Pit Dimensions(mm) |
| DCQG6-0.6 | 2000*2500 | 400 | 300 | 200 | 0.75kw | 2080*2540*600 |
| DCQG8-0.6 | 2000*2500 | 400 | 300 | 200 | 0.75kw | 2080*2540*600 |
| DCQG10-0.6 | 2000*2500 | 400 | 300 | 200 | 0.75kw | 2080*2540*600 |
| DCQG12-0.6 | 2000*2500 | 400 | 300 | 200 | 0.75kw | 2080*2540*600 |
